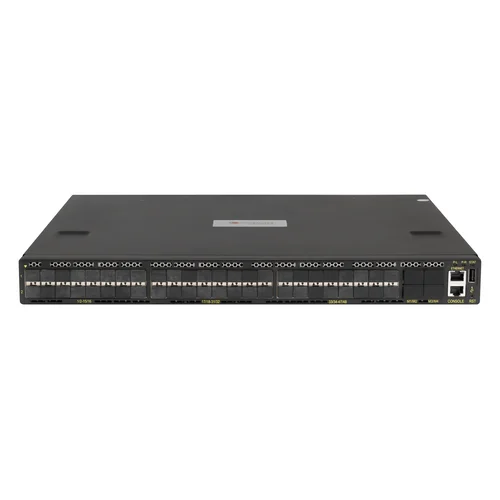

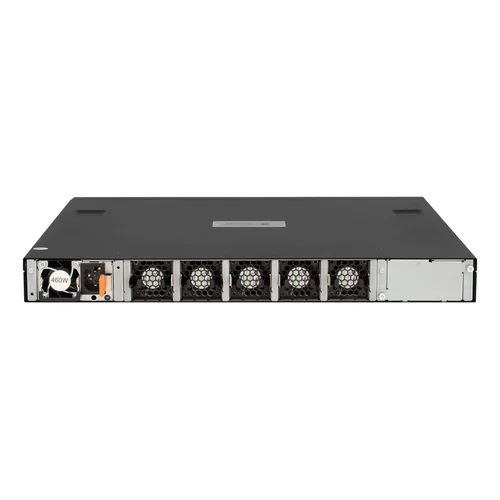

Управляемый коммутатор уровня 3 Orion Delta D48E

Технические характеристики

Основные

Интерфейсы

48 x 1/10G SFP/SFP+

4 x 40G QSFP+

1 x 10/100/1000Base-T RG45 Ethernet Management Port

Консольный порт

RJ-45

Производительность

Коммутационная матрица

1280Gbps

Пропускная способность

960Mbps

Размер таблицы MAC адресов

128K

Размер таблицы маршрутизации

16K

Физические параметры

Входное напряжение

100 ~ 240 VAC, 50/60 Hz

Максимальная потребляемая мощность

281 Ватт

Размеры (Ш х Г х В)

440 х 408 х 44 мм

Вес

9.5 кг

Диапазон рабочих температур

0 ~ 40 ℃

Диапазон температур хранения

-40 ~ 70 ℃

Допустимая влажность

15% ~ 85%

Спецификации программного обеспечения

Switching mode

Store and forward mode

Non-blocking switching

VLAN

IEEE 802.1Q VLAN: 4K active VLANs

Port-based VLAN, MAC VLAN, Voice VLAN, PVLAN, Protocol VLAN, Multicast VLAN

GVRP

Storm Control

Broadcast/multicast/unicast/DLF storm control

Multicast

IGMP Snooping V1/V2/V3 and L2 query, ND Snooping, MLD V1/V2 Snooping

IGMP Proxy, Static Multicast Route, Multicast Recieve Control

DVMRP, PIM-DM, PIM-SM, PIM-SSM, Anycast, RP, MSDP

Illegal Multicast Source Detection

IPv6 Multicast VLAN, PIM-SM/DM for IPv6, IPv6 Anycast RP

Mirroring

N-to-1 Port Mirroring

RSPAN

ERSPAN

IPv4 Functions

Static Routing, RIP V1/V2, OSPFv2, BGP4, OSPFv3, BGP4+, OSPF Multiple Process, LPM

Routing, Policy-Based Routing (PBR), VRRP, URPF, ECMP, BFD

ARP Guard, Local ARP Proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit

Anti ARP/NDP Cheat, Anti ARP/NDP Scan

DNS Client

IPv6 Functions

6-to-4 Tunnel, Configured Tunnel, ISATAP Tunnel, GRE Tunnel

ICMPv6, ND, DNSv6

IPv6 LPM Routing, IPv6 Policy-Based Routing (PBR), IPv6 VRRPv3, IPv6 URPF, IPv6 RA,

RIPng, OSPFv3, BGP4+, IPv6 ACL, IPv6 QoS

MPLS

MPLS, VRF, LDP, MPLS L3 VPN, MPLS L2 VPN (VPLS), VPWS

Port Loopback Detection

Supported

MAC Address Table

128K MAC Address Table

Q-in-Q

Q-in-Q, Selective Q-in-Q, Flexible Q-in-Q

N-to-1 VLAN Translation

Link Aggregation

802.3ad LACP, max 128 group trunk with max 8 ports for each trunk

LACP Load Balance

Flow Control

HOL

IEEE802.3x

STP

STP, RSTP & MSTP

Root Guard, BPDU Guard, BPDU Tunnel

Digital Diagnostic (DDMI)

Supported

System Management

CLI/Telnet/SNMP/Web management through IPv4 and IPv6

RMON1, 2, 3 & 9, Syslog sna external syslog server, HTTP SSL, SNMP MIB, SNMP TRAP,

FTP/TFTP, SNTP/NTP, Authentication by RADIUS, SSH V1/V2, Dual firmware images /

configuration files, 802.3ah OAM, 802.1ag OAM*

QoS

8 queues per port

SWRR, SP, WRR, DWRR, SDWRR, WRED

Traffic classification based on 802.1p CoS, ToS, DiffServ DSCP, ACL, port number

Traffic Shaping

PRI Mark/Remark

ACL

IP ACL, MAC ACL, IP-MAC ACL

Standard and expanded ACL based on source/destination IP or MAC, IP protocol, TCP/UDP

port, DSCP, ToS, IP Precedence, VLAN, Tag/Untag, CoS

Redirect and accounting based ACL

Rules can be configured to port, VLAN, VLAN routing interface

Time-ranged ACL

Security

802.1x AAA, Port, MAC-based authentication

Accounting based on time length and traffic

Guest-VLAN and Auto-VLAN

RADIUS for IPv4 and IPv6, TACACS+ for IPv4 and IPv6

MAB

DHCP

DHCP Server/Client for IPv4 and IPv6

DHCP Relay/Option 82

DHCP Snooping/Option 82

Traffic Monitor

IP FIX traffic monitor, 1:1*

sFlow traffic analysis

Data Center Features*

FCoE (Fiber Channel over Ethernet)

TRILL (Transparent Interconnection of Lots of Links)

DCB (Data Center Bridging)

802.1Qbb - Priority-based Flow Control (PFC)

802.1Qaz - Enhanced Transmission Selection (ETS and DCBX)

802.1Qau - Congestion Notification (CN/QCN)

IEEE VEPA (Virtual Ethernet Port Aggregator)

VSF (Virtual Switch Framework)
